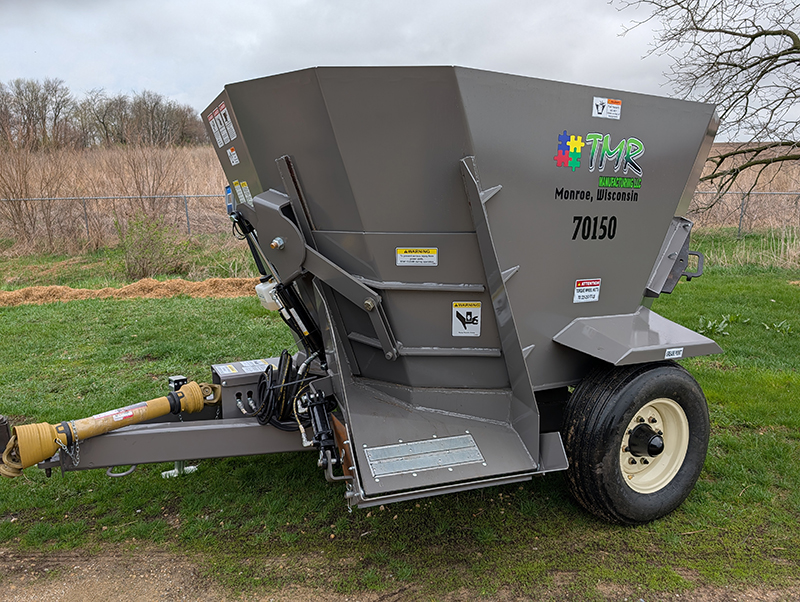

70 Series Single Screw TMR Mixers
TMR Manufacturing's 70 Series Single Screw Heavy Duty Vertical TMR Mixers are built heavier than the majority of our competition. All 70 Series single screw models are available in side discharge and front discharge.
Models range from 350 cubic feet to 500 cubic feet in capacity. The single screw models boast a 5/8" thick floor, 1/4" thick walls, 5/8" to 1/2" screw flighting and a heavy 5" x 7" x 1'4" wall tube frame. Add onto that an Italian built planetary gearbox and you have a machine that stands about the competition. the standard Digi-Star EZ2500V scale provides a complete mix ratio experience.
The 70 Series Single Screw Vertical TMR Mixers are available in left hand or right hand side and front discharge models. Other discharge points are available as special order. All mixers feature standard discharge magnets, retention knives in the wall, hydraulic actuated doors and hay retention chains.
TMR Manufacturing offers 3 standard discharge conveyor options. Choose from a 36", 48", or 60" discharge conveyor length. Other lengths are available as special order items. The front discharge models come standard with a 24" kick-up conveyor.
All 70 Series mixers come with a 1 year limited parts and labor warranty for peace of mind.
| 70350 SD | 70350 FD | 70425 SD | 70425 FD | 70500 SD | 70500 FD | |
|---|---|---|---|---|---|---|
| Capacity (cu-ft) | 350 | 350 | 425 | 425 | 500 | 500 |
| Capacity (Bushel) | 282 | 282 | 343 | 343 | 403 | 403 |
| Capacity with Extensions | 390 | 390 | 475 | 475 | 550 | 550 |
| Knives on Auger (Standard) | 8 | 8 | 10 | 10 | 12 | 12 |
| Loading Height (in) | 93 | 93 | 89 | 89 | 98 | 98 |
| Overall Width (in) | 102 | 111 | 115 | 124 | 115 | 124 |
| Overall Length (in) | 167 | 200 | 184 | 218 | 184 | 218 |
| Empty Weight (lb.) | 6,500 | 7,800 | 7,500 | 8,800 | 7,800 | 9,100 |
| Scale System | Standard | Standard | Standard | Standard | Standard | Standard |
| Weighbars | 3 | 3 | 4 | 4 | 4 | 4 |
| Discharge | Side, LH or RH | Front | Side, LH or RH | Front | Side, LH or RH | Front |
| Discharge Height (Slide in) | 24 | 32 | 24 | 32 | 24 | 32 |
| Discharge Height (36" conveyor) | 35" | 50" with 24" kickup | 35" | 50" with 24" kickup | 35" | 50" with 24" kickup |
| Discharge Height (48" conveyor) | 46" | 60" | 46" | 60" | 46" | 60" |
| Power Source | 540 rpm PTO | 540 rpm PTO | 540 or 1,000 rpm PTO | 540 or 1,000 rpm PTO | 1,000 rpm PTO | 1,000 rpm PTO |
| Hay Retention Chain | Standard | Standard | Standard | Standard | Standard | Standard |
| Side Restrictor Knives | 2 Standard | 2 Standard | 2 Standard | 2 Standard | 2 Standard | 2 Standard |
| Wall Thickness | 1/4 inch | 1/4 inch | 1/4 inch | 1/4 inch | 1/4 inch | 1/4 inch |
| Auger Thickness | Variable, 5/8" to 1/2" | Variable, 5/8" to 1/2" | Variable, 5/8" to 1/2" | Variable, 5/8" to 1/2" | Variable, 5/8" to 1/2" | Variable, 5/8" to 1/2" |
| Floor Thickness | 5/8 inch | 5/8 inch | 5/8 inch | 5/8 inch | 5/8 inch | 5/8 inch |
| Discharge Magnet | Standard, 18 x 5.5 in. | Standard, 18 x 5.5 in. | Standard, (2) 18 x 5.5 in. | Standard, (2) 18 x 5.5 in. | Standard, (2) 18 x 5.5 in. | Standard, (2) 18 x 5.5 in. |
| Door | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Sweeper Arms | 1 | 1 | 2 | 2 | 2 | 2 |
| Truck Mount | Optional | Optional | Optional | Optional | Optional | Optional |
| Stationary | Optional | Optional | Optional | Optional | Optional | Optional |
| HP Requirement | 60 | 60 | 70 | 70 | 80 | 80 |
